RapidAir Urban

Commodity code : CMP-135SG5

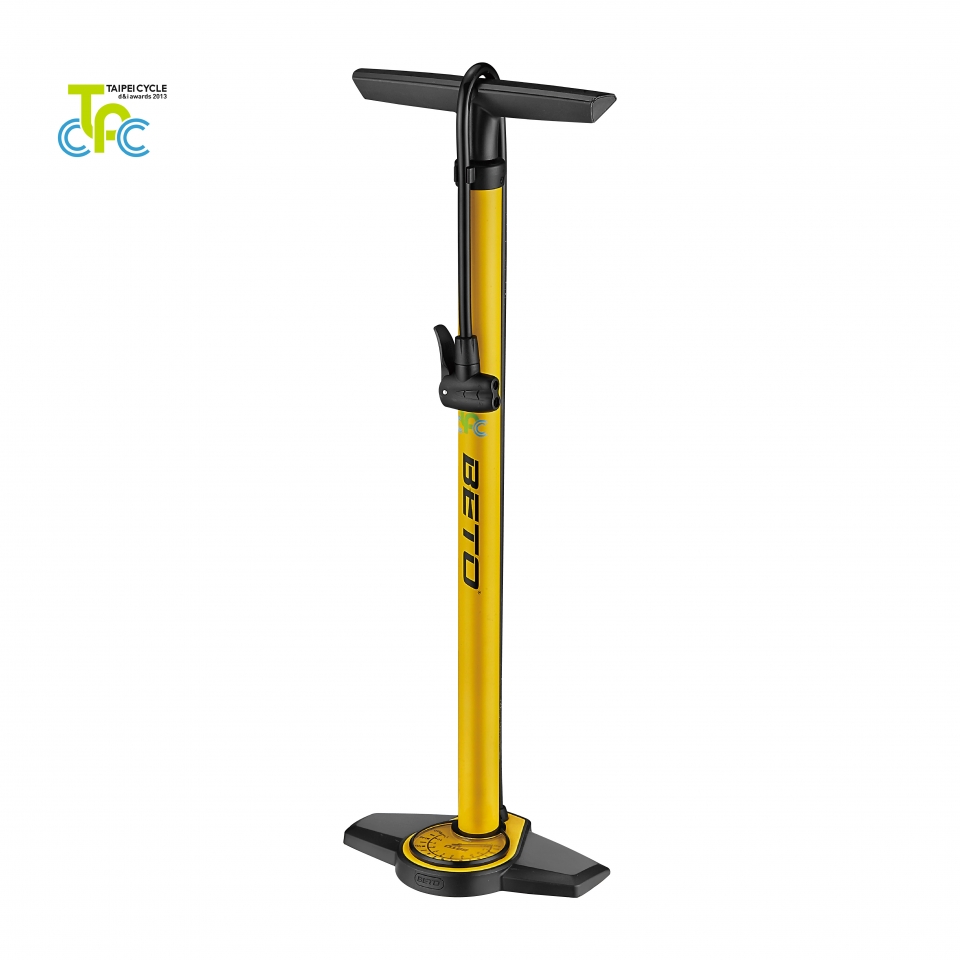

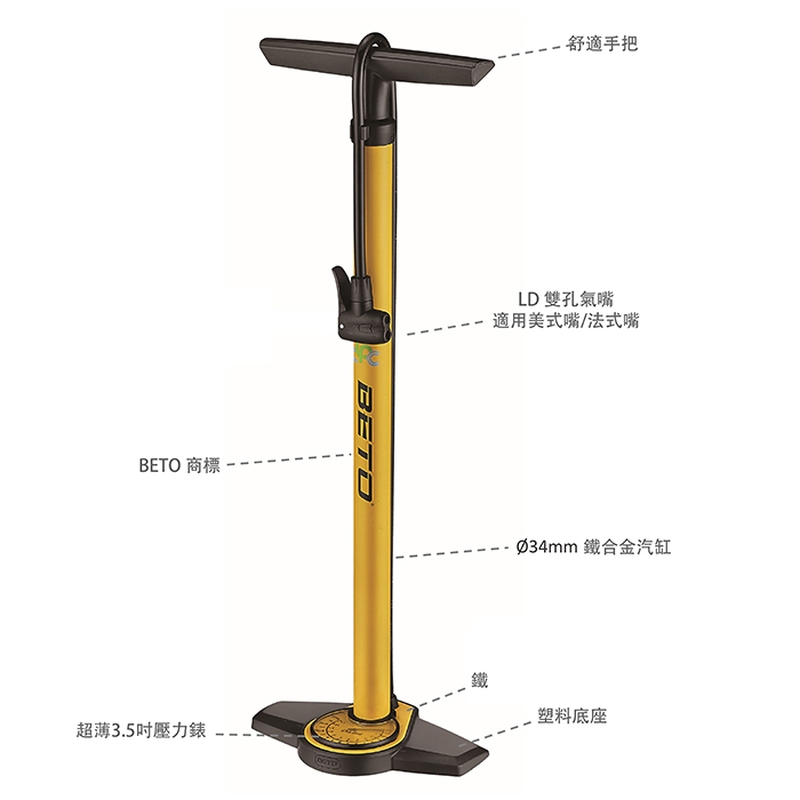

26" STEEL FLOOR PUMP W/GAUAGE

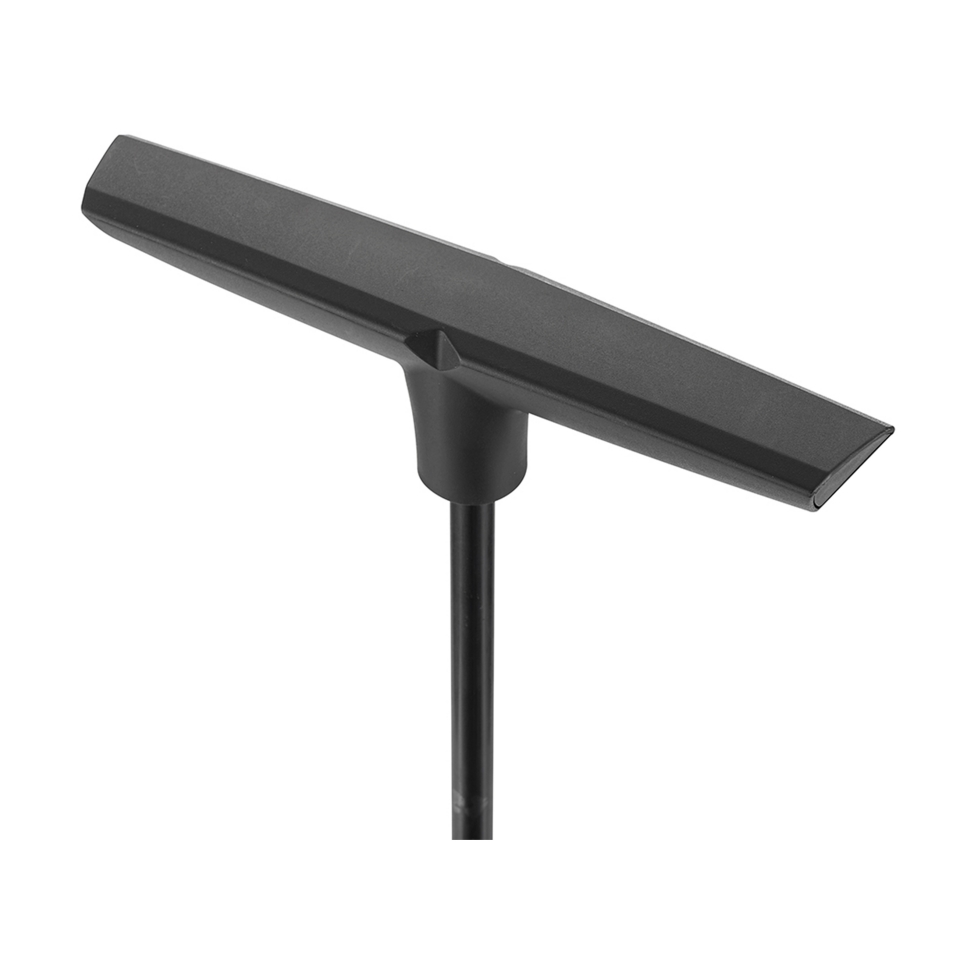

Composite handle
Ø34mm steel barrel w/steel&plastic base

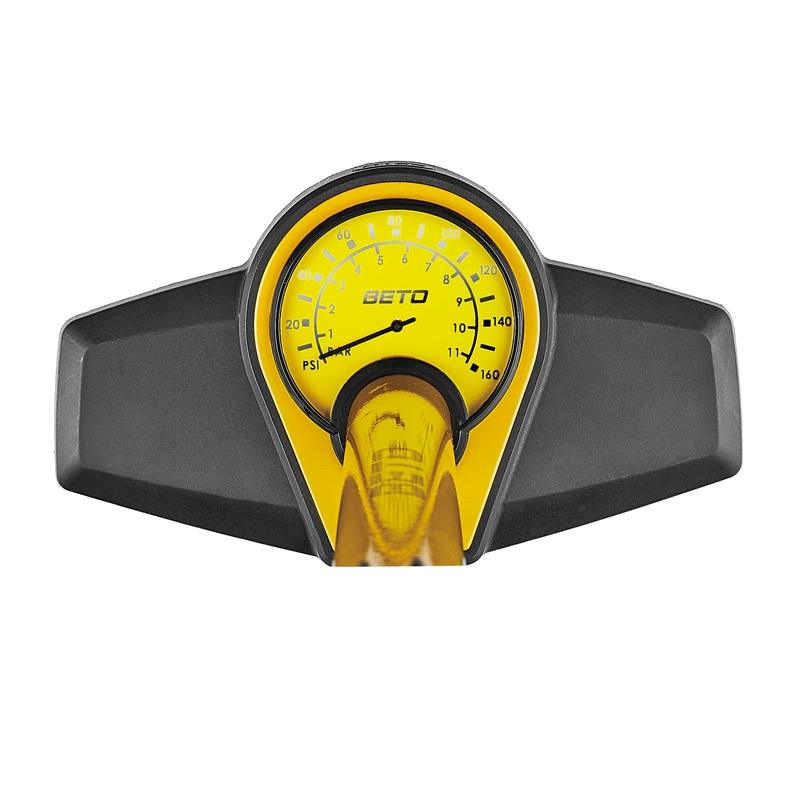

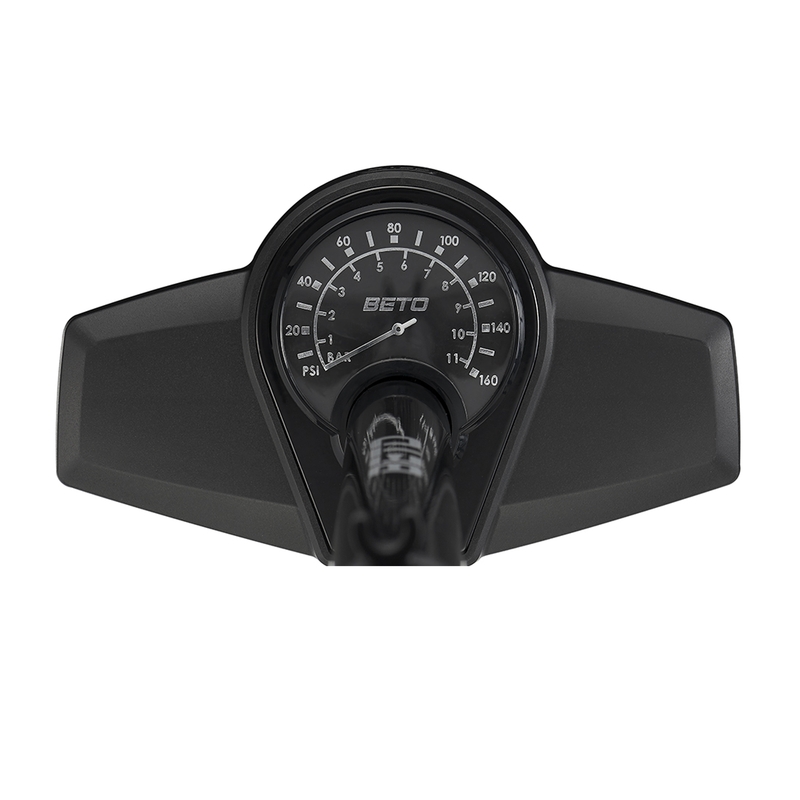

Super Low-Profile 3.5" pressure gauge

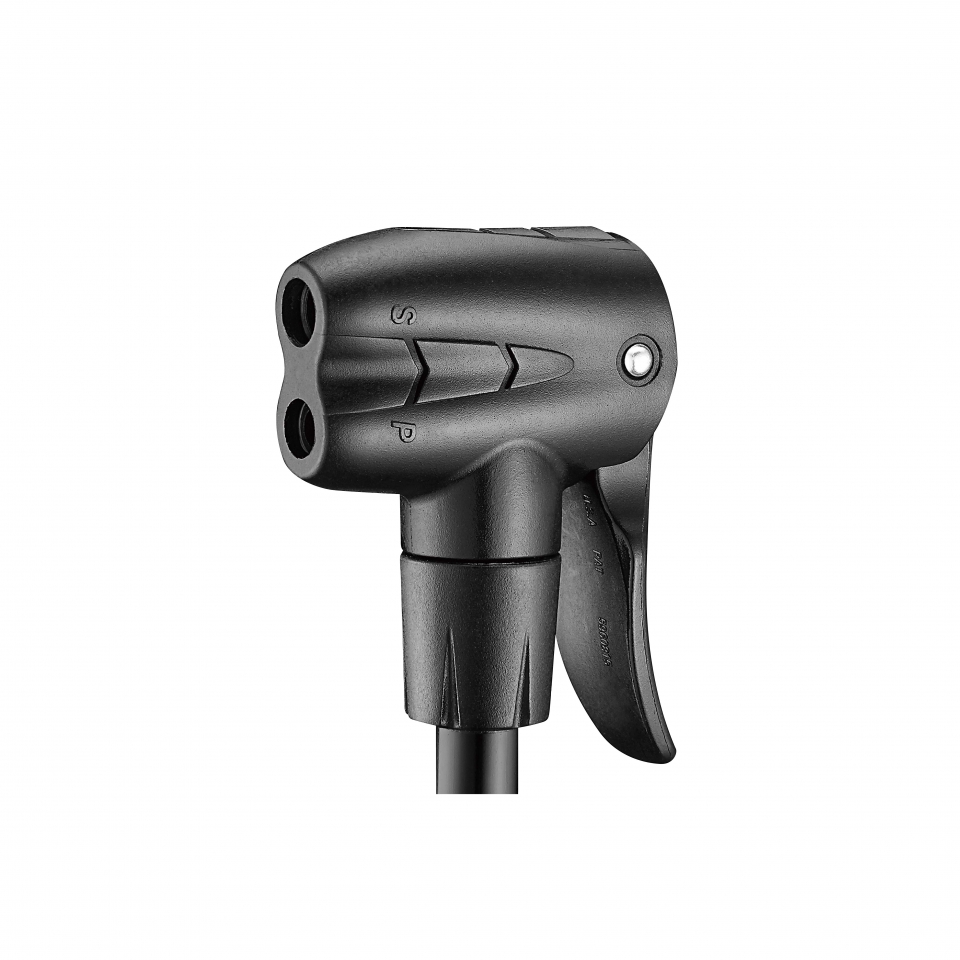

Dual Valve LD Head fits Schrader/Presta
*Pump valve may vary in different countries

LD160PSIGUAGE
 26929
  • RapidAir Basic






  • RapidAir Urban  Step1RapidAir Urban-Step2RapidAir Urban-Step3 RapidAir Urban-Step4
  • Model NO. Color Options Weight (g) Height (cm) Base Width (cm) Guage Max PSI Tube Diameter (mm) Special Features Material
    Handle/Barrel/Base
    CMP-135SG5 YL/RD/BK 1180 66 23 3.5" 160 Ø34 Taipei Cycle d&i awards 2014 Plastic/Steel/Steel&Plastic

    Pump valve varies in different countries.
  • This design redues the number of parts by combining 1) check valve assembly, 2) pressure gauge mechanis, and 3) hose outlet all together in one part that can be encased in base which is no more than 15 mm in height. Traditionally, for the existing pumps, these 3 parts are in different places which mean a lot of parts & work. Now, one single part takes all. Additionally, this design makes base become the face of gauge. The result is an exceptionally clean look floor pump. It truly gives a fresh look and different thoughts for designing a pump.
